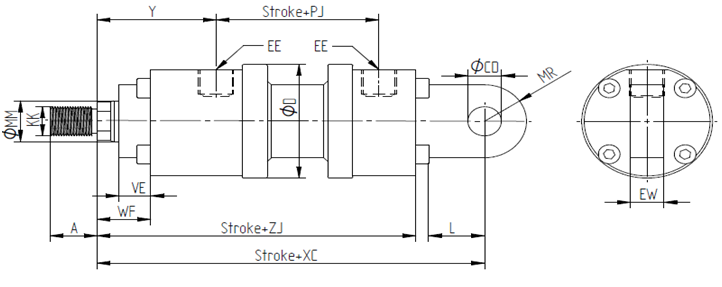

Model 17 Cap Fixed Plain Eye Mount (ISO MP3)
These mounts are for applications in which the machine member travels in a curved path within one plane. These mounts can be used both in compression (push) and tension (pull). Care must be exercised to prevent rod buckling in compression applications with long strokes.
| Bore | CD | EW | L | MR | EE BSP | WF | VE | Y | Stroke+ | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PJ | ZJ | XC | |||||||||
| 25 | 12 | 12 | 16 | 16 | 1/4" | 28 | 15 | 58 | 77 | 148 | 178 |
| 32 | 16 | 16 | 20 | 20 | 1/4" | 32 | 19 | 64 | 89 | 170 | 206 |
| 40 | 20 | 20 | 25 | 25 | 1/2" | 32 | 19 | 71 | 97 | 190 | 231 |
| 50 | 25 | 25 | 32 | 32 | 1/2" | 38 | 24 | 72 | 111 | 205 | 257 |
| 63 | 32 | 32 | 40 | 40 | 3/4" | 45 | 29 | 82 | 117 | 224 | 289 |
| 80 | 40 | 40 | 50 | 50 | 3/4" | 54 | 36 | 91 | 134 | 250 | 332 |
| 100 | 50 | 50 | 63 | 63 | 1" | 57 | 37 | 108 | 162 | 300 | 395 |
| 125 | 63 | 63 | 71 | 71 | 1" | 60 | 37 | 121 | 174 | 325 | 428 |
| 160 | 80 | 80 | 90 | 90 | 1-1/4" | 66 | 41 | 143 | 191 | 370 | 505 |
| 200 | 100 | 100 | 112 | 112 | 1-1/4" | 75 | 45 | 190 | 224 | 450 | 615 |
